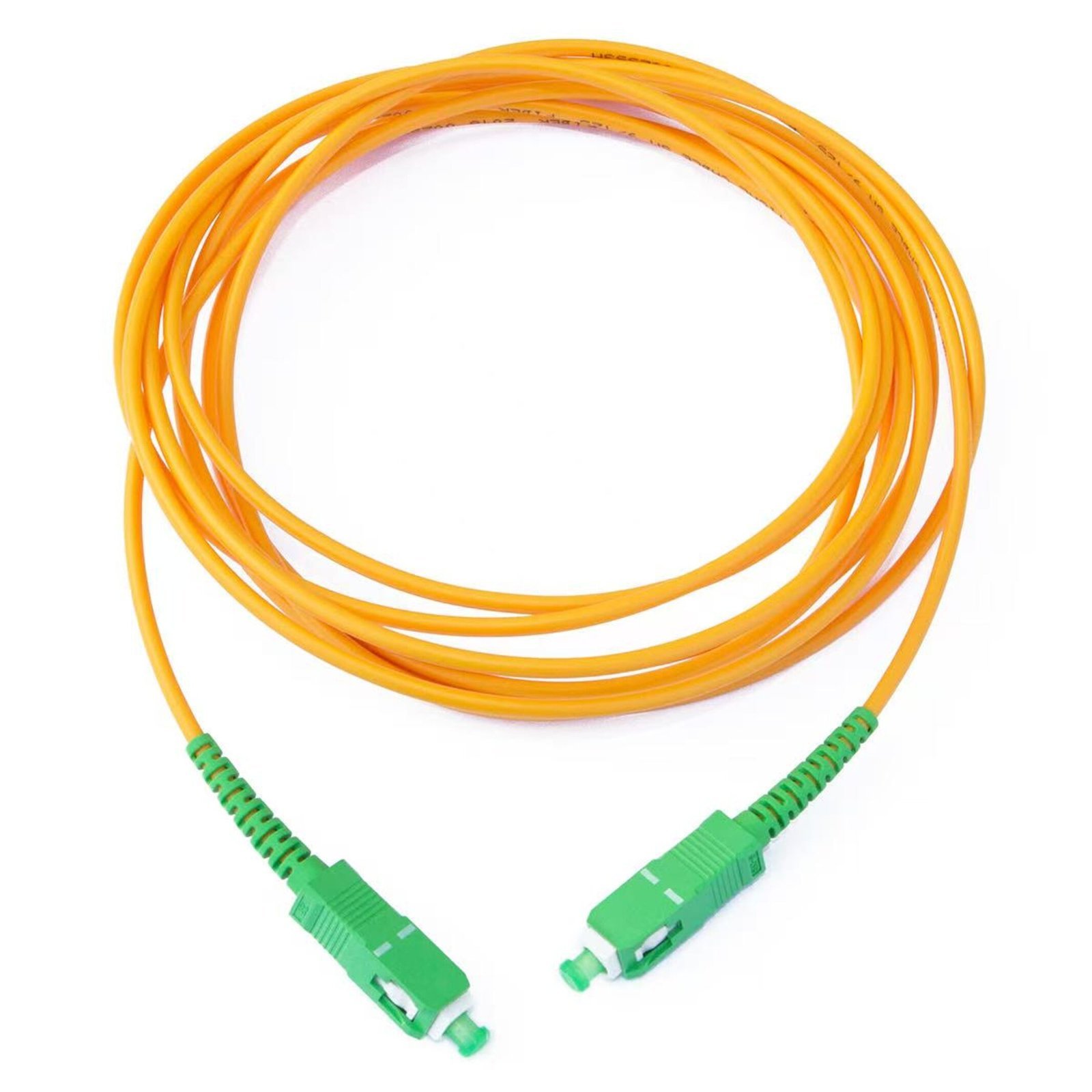

Optical Patch Cord SC/APC-SC/APC

Key Features and Description:

Connectors: SC (Subscriber Connector) push-pull mechanism for easy installation and high density.
Polish Type: APC (Angled Physical Contact) 8-degree angle polish drastically minimizes return loss (back reflection), making it superior to UPC for critical applications.
Fiber Type: Single-mode (typically OS2 9/125μm), designed for long-distance, high-bandwidth data transmission.
Structure: Usually simplex (single fiber) or duplex (two fibers) with 2.0mm or 3.0mm LSZH (Low Smoke Zero Halogen) jacket, offering environmental protection.
Performance: Low insertion loss (≤0.3dB) and high return loss (≥60dB).
Applications: Ideal for fiber optic CATV, FTTH (Fiber to the Home), Passive Optical Networks (PON), and high-speed data networks.

Common Specifications:

Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC.
Color: Green connectors (Standard for APC) with yellow cable (Standard for Single-mode).
Lengths: Available in various lengths (1m, 3m, 5m, 10m+).
Compliance: IEC and Telcordia GR-326-CORE standards.
