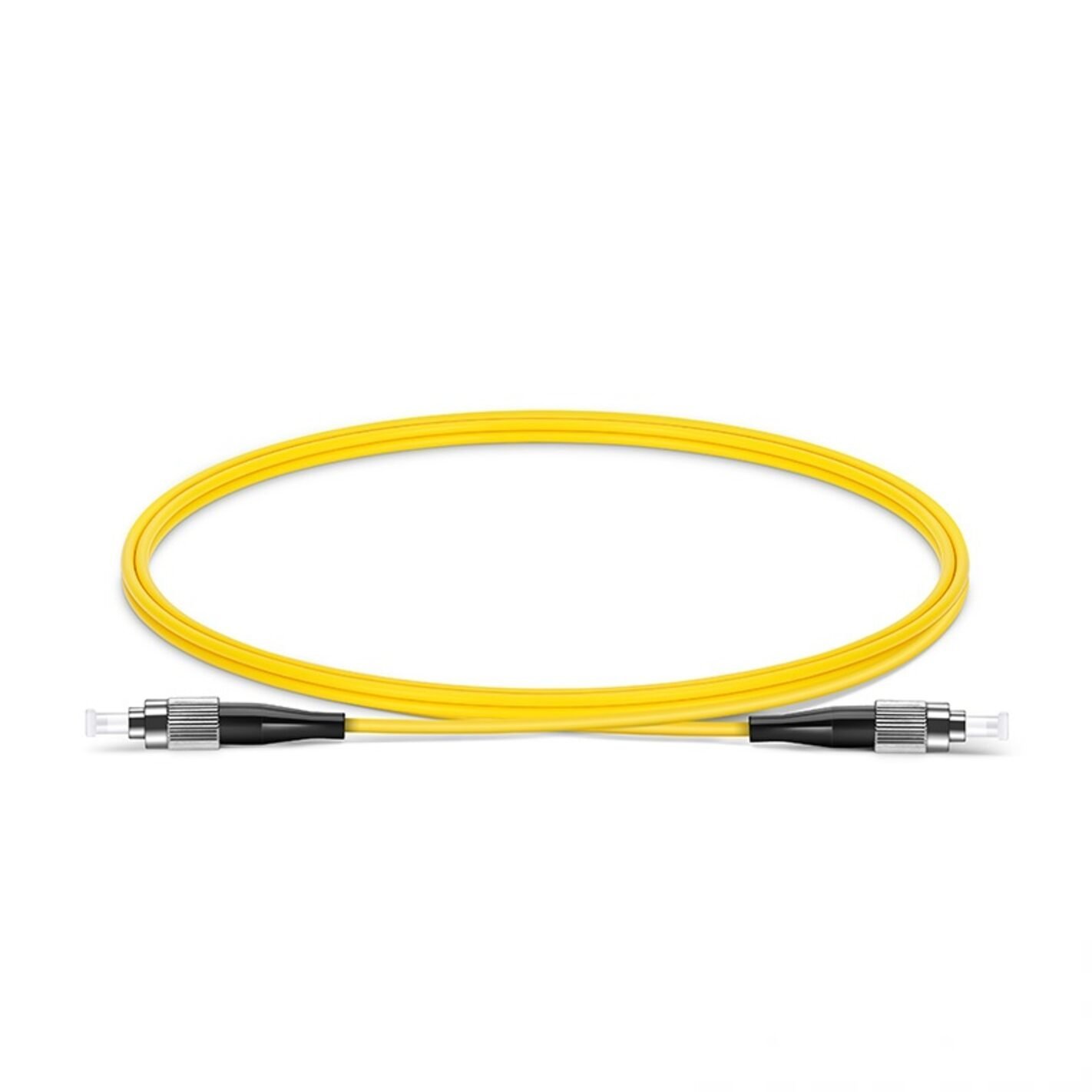

Optical Patch Cord FC/UPC-FC/UPC

Brand:

Price range: ₨209.05 through ₨367.25

Shipping calculated at checkout.

lenght

Clear

SKU: N/A Categories: Optical Fiber Cable & Accessories

Feel free to Get in touch

Key Features and Specifications:

Connector Type: FC (Ferrule Connector) with threaded body for secure, vibration-resistant connections.
Polish: UPC (Ultra Physical Contact) for improved surface finish, resulting in lower back-reflection.
Fiber Type: Commonly Single-mode (SM) 9/125𝜇𝑚 (OS2).
Cable Configuration: Simplex (1 core) or Duplex (2 cores).
Performance: Typical Insertion Loss≤0.2dB – 0.3dB; Typical Return Loss ≥50dB.
Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC.
Diameter: Generally 3.0mm, 2.0mm, or 0.9mm

Common Applications:

Telecommunication Networks: Long-distance and metropolitan networks.
FTTH (Fiber to the Home): Used in fiber distribution frames.
Testing Equipment: High-precision, reliable connections for measuring instruments.
CATV: Signal transmission for cable television.
